The Arrow Builder's RecordArrow Build and Bow Tuning Log
Arrow build and bow tuning log sheets for archers who build their own arrows. Eleven sheets, US Letter and A4, instant download, print them forever.
- 11 sheets
- Letter + A4
- 5 PDFs
- Bow case cards
$12 Instant download
Sold and delivered through Etsy. Range Doctrine does not process payments on this site.
In Short
A good arrow is a list of numbers. Spine, GPI, cut length, insert, point, vane, wrap, nock, total weight, FOC, speed. Then the bow. Most of us keep those numbers in a spreadsheet we never finished, and rebuild the tune from memory next season. This is the paper version, built properly.
Why It Is Different
The scale checks the sum
The weight build-up adds the arrow component by component, then records what the scale actually says.
FOC, the published way

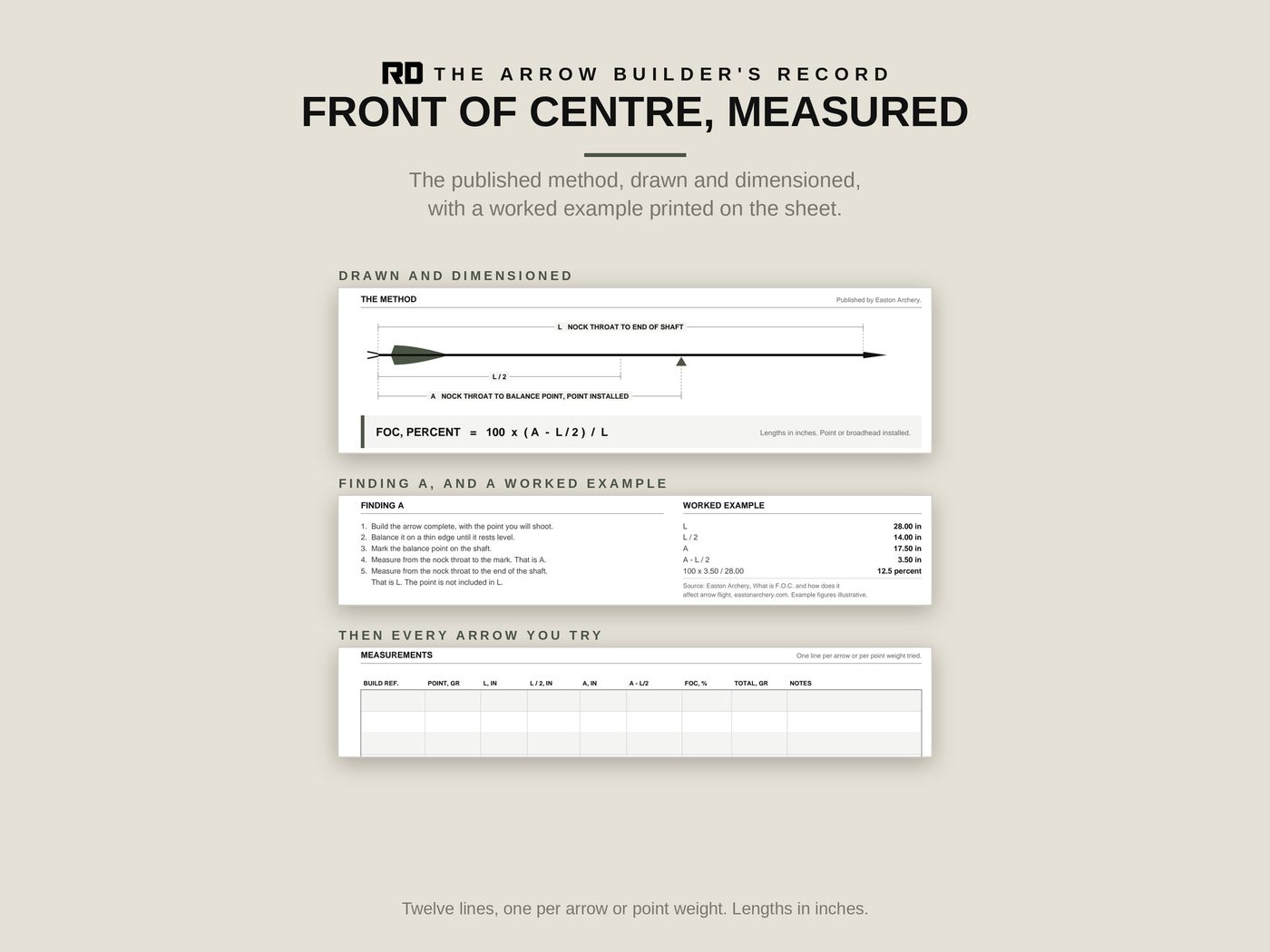

The Easton Archery method, with a dimensioned drawing, the formula, a worked example and the source on the page.
Draw the tear
Every paper tuning row carries a crosshair, so you draw the tear instead of describing it.
Exact constants

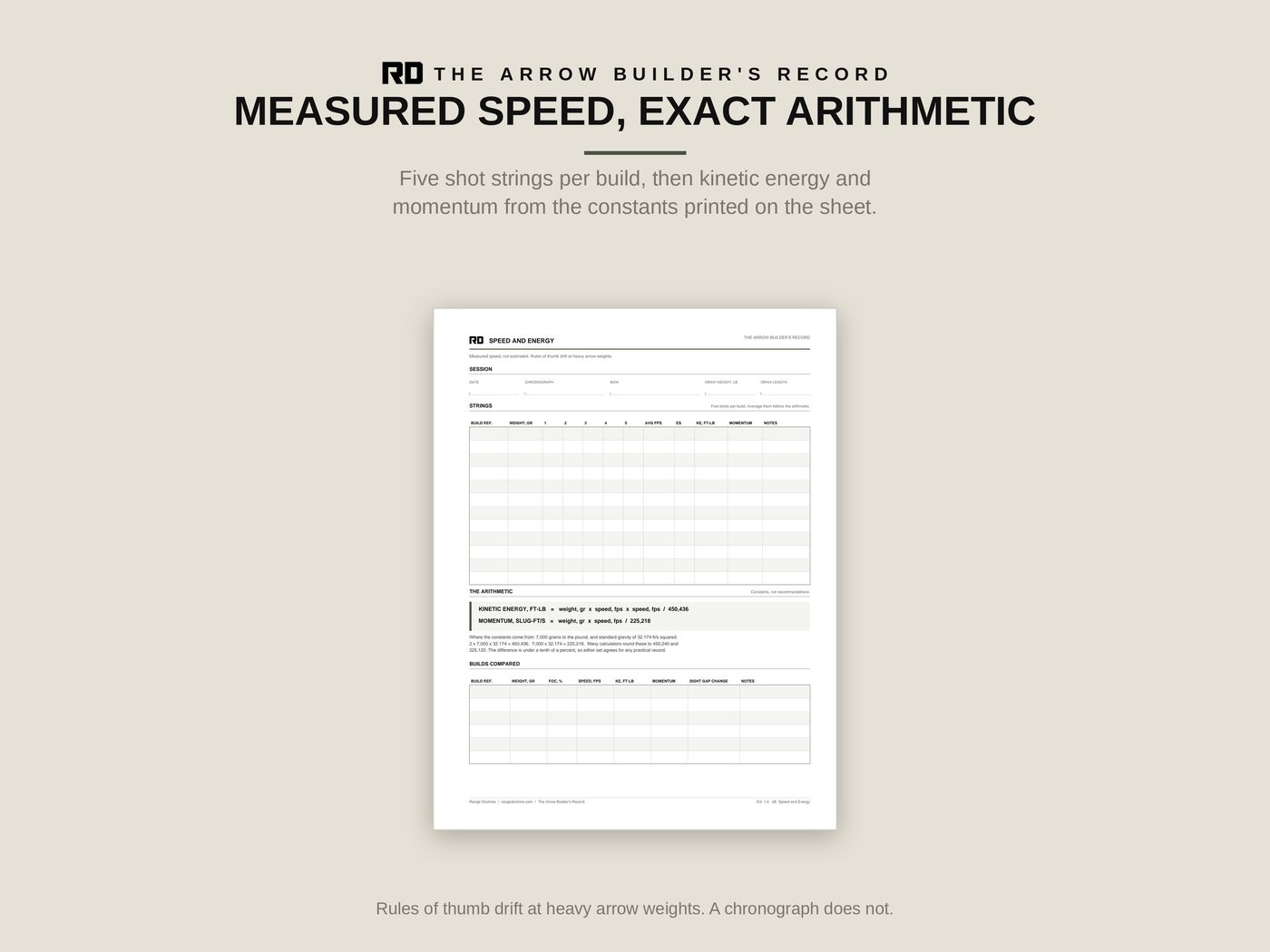

Kinetic energy and momentum use constants derived on the sheet from 7,000 grains per pound and standard gravity.
Room to write
Fields 0.33 in deep, rows 0.28 in, and a 0.75 in punch margin.
Your numbers, not ours
No spine charts, no component data, no draw weight advice. These sheets record what you built and how it flew.
What You Get

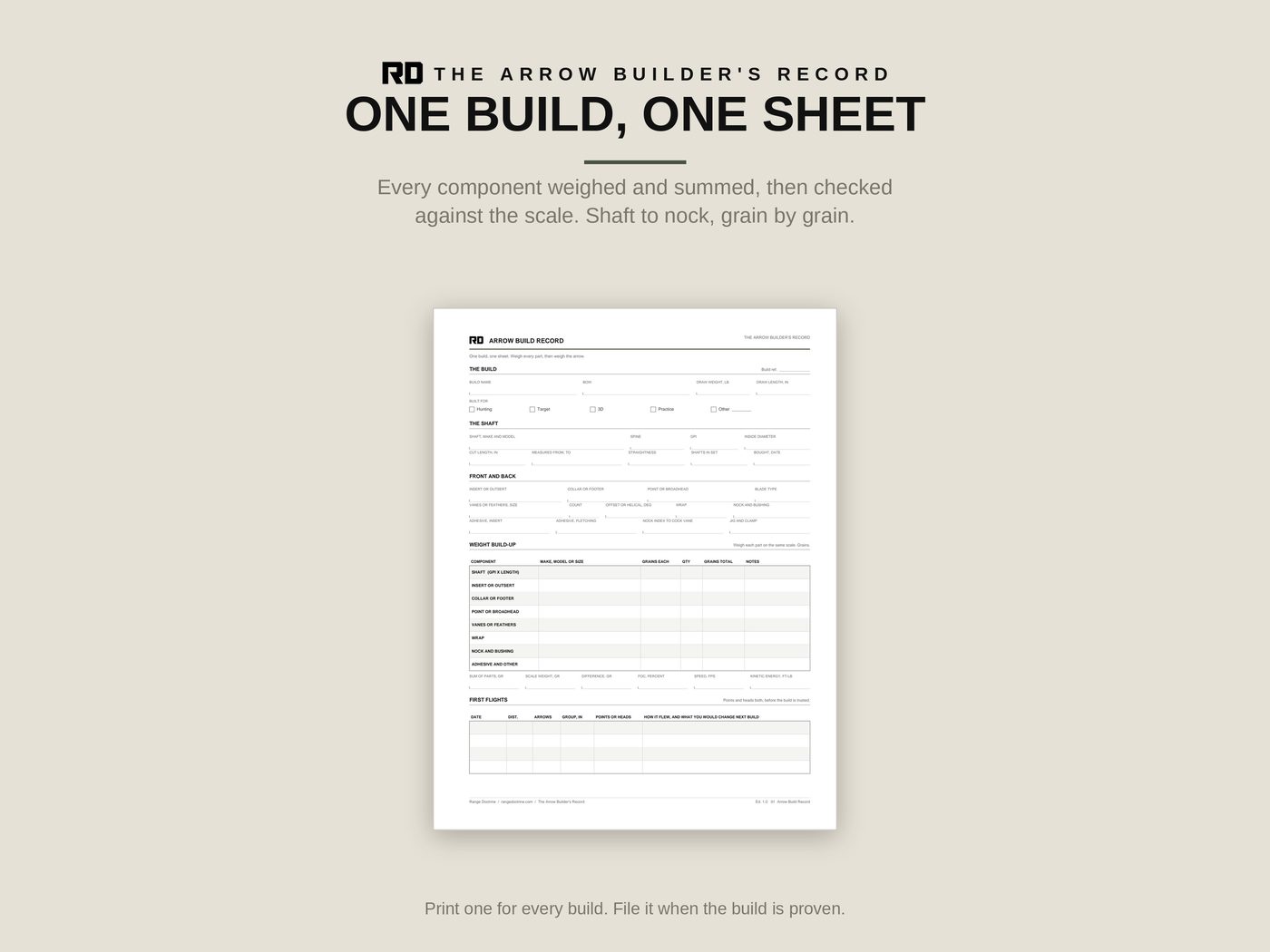

- Arrow Build Record. Shaft, ends, adhesives, nock index, weight build-up, first flights
- FOC Worksheet. Dimensioned drawing, formula, worked example, twelve lines
- Arrow Set Card. Sixteen numbered arrows, weight, straightness, spin, which ones hunt
- Bow Setup Record. Draw weight, tiller, timing, rest, centershot, peep, sight, change log

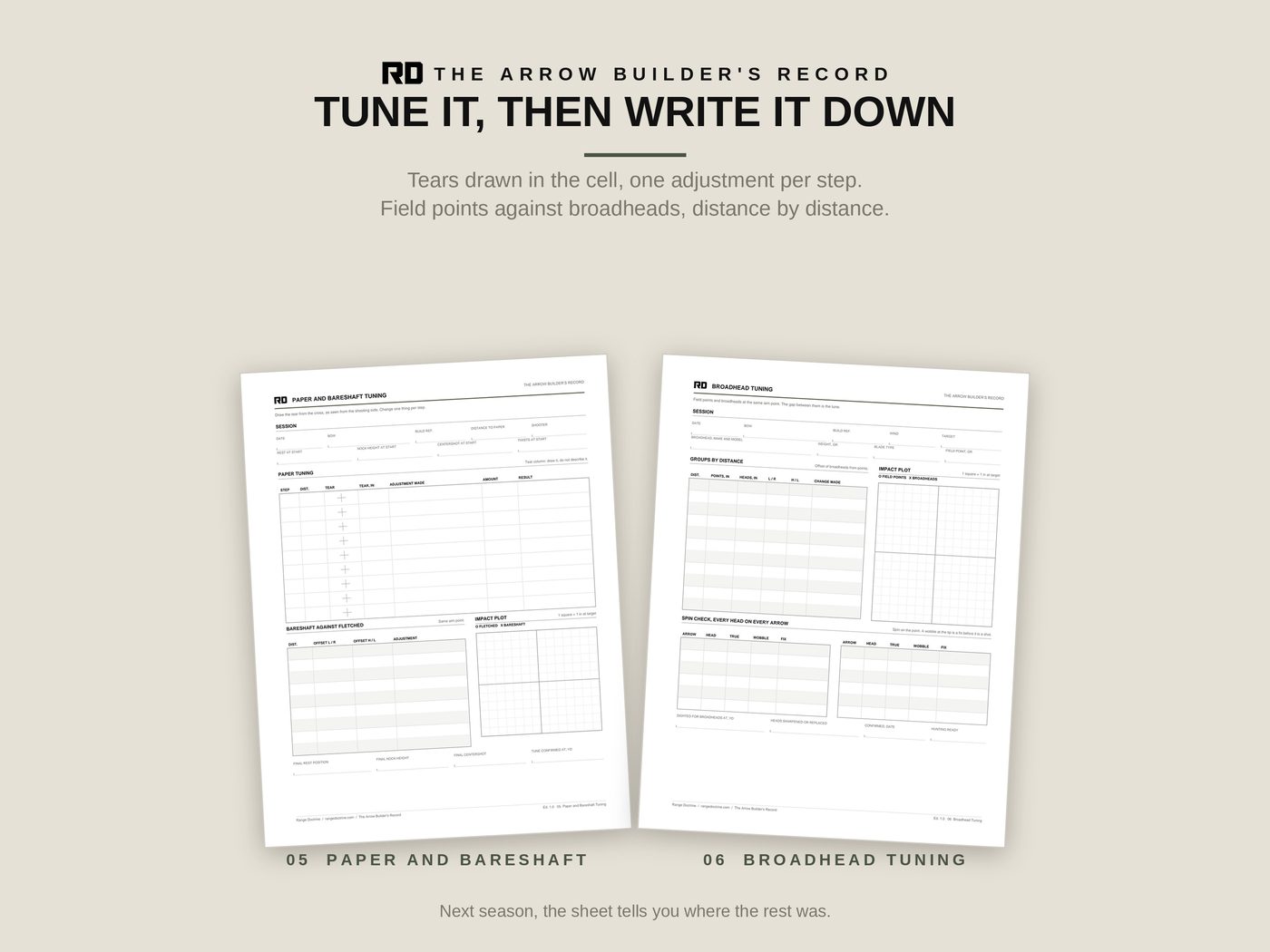

- Paper and Bareshaft Tuning. Nine steps with a crosshair per row
- Broadhead Tuning. Field points against heads, distance by distance
- Sight Marks and Pin Gaps. Fifteen confirmed marks, seven pin gaps
- Speed and Energy. Five shot strings per build
- Practice Log. Twenty two sessions per page
- Build Index and Inventory. Every build you trust, and the shelf

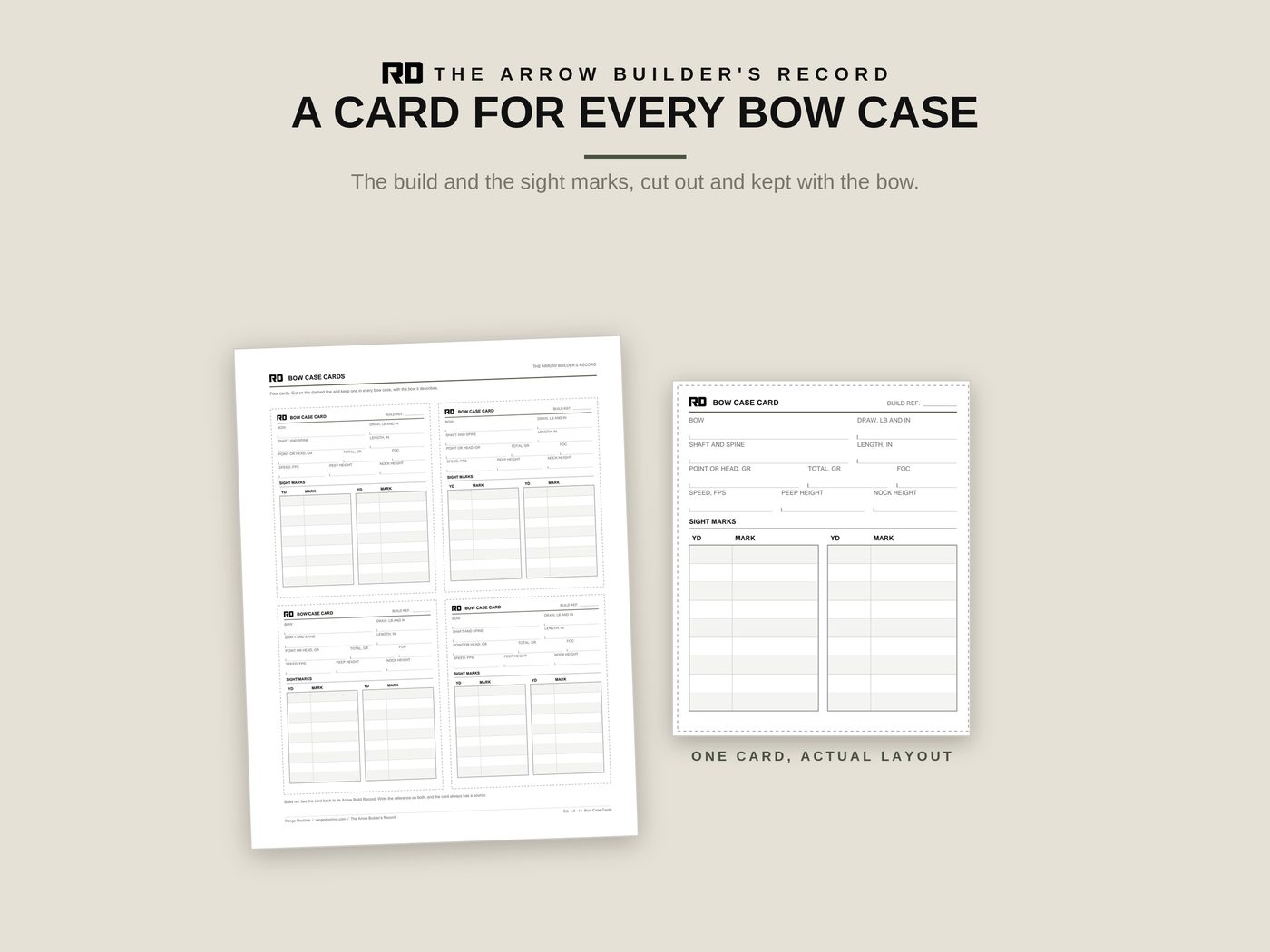

- Bow Case Cards. Four cut-out cards per sheet
What you download
- The complete eleven sheet set, US Letter
- The complete eleven sheet set, A4
- Arrow Build Record and Arrow Set Card, US Letter
- Arrow Build Record and Arrow Set Card, A4
- Bow case cards, US Letter and A4 in one file
Print at 100 percent, Actual Size. Never Fit to Page. How to print at actual size →
